Parametric Fountain System: From Rigid to Flexible
Executive Summary
I consolidated 12 separate Model Groups into a single, intelligent Parametric Family with configurable size, installation style, and maintenance access orientation. This achieved a 92% reduction in library clutter while enabling instant site adaptation and eliminating coordination conflicts between Landscape and MEP disciplines.
Product Gallery
.png)
.png)
.png)
.png)
.png)
.png)
.png)
The Challenge: Redundancy and Rigid Access
Our landscape and MEP teams relied on a library of Revit Model Groups for standard fountain details. The library was repetitive and inflexible.
The Matrix Problem:
We needed specific combinations (Small-Plain, Large-Sunken, Medium-Surface, etc.). Managing these as 12 separate groups meant that updating a standard detail required editing 12 separate files.
The Coordination Problem:
- Fixed Door Orientation: All groups had a fixed maintenance door orientation (Back Side).
- Site Conflicts: If a fountain was placed against a wall or obstacle where the back was inaccessible, designers had to manually remodel the group.
- Misalignment: Rotating the entire unit often misaligned it with the site grid.
The Solution: A "Configurator" Family
I replaced the entire Model Group library with a single Parametric Family. This family uses a combination of Types and Instance/Visibility parameters to generate any required variation instantly.
Size Options
- • 4 Standard Sizes: Small, Medium, Large, Extra Large
- • Clean and intuitive type selector
Installation Styles
- • Plain: Standard standalone unit

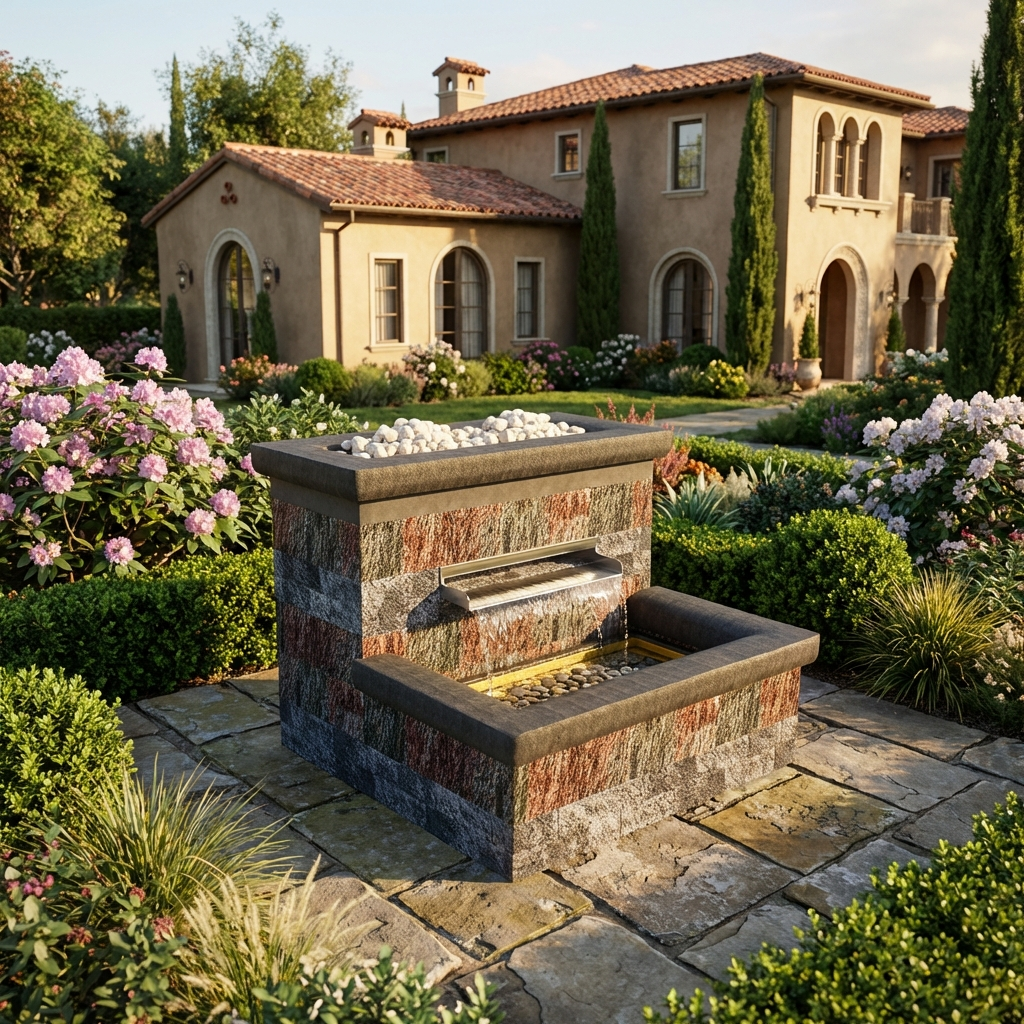

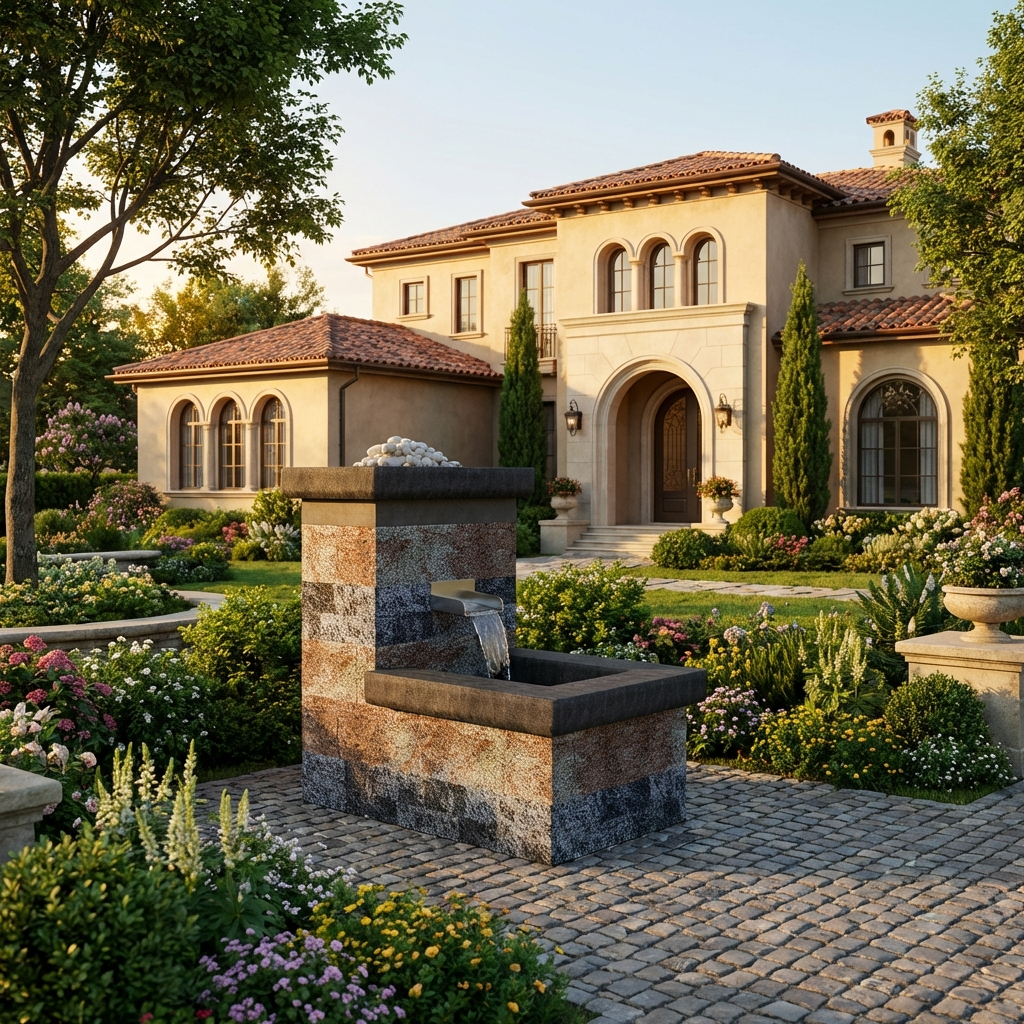

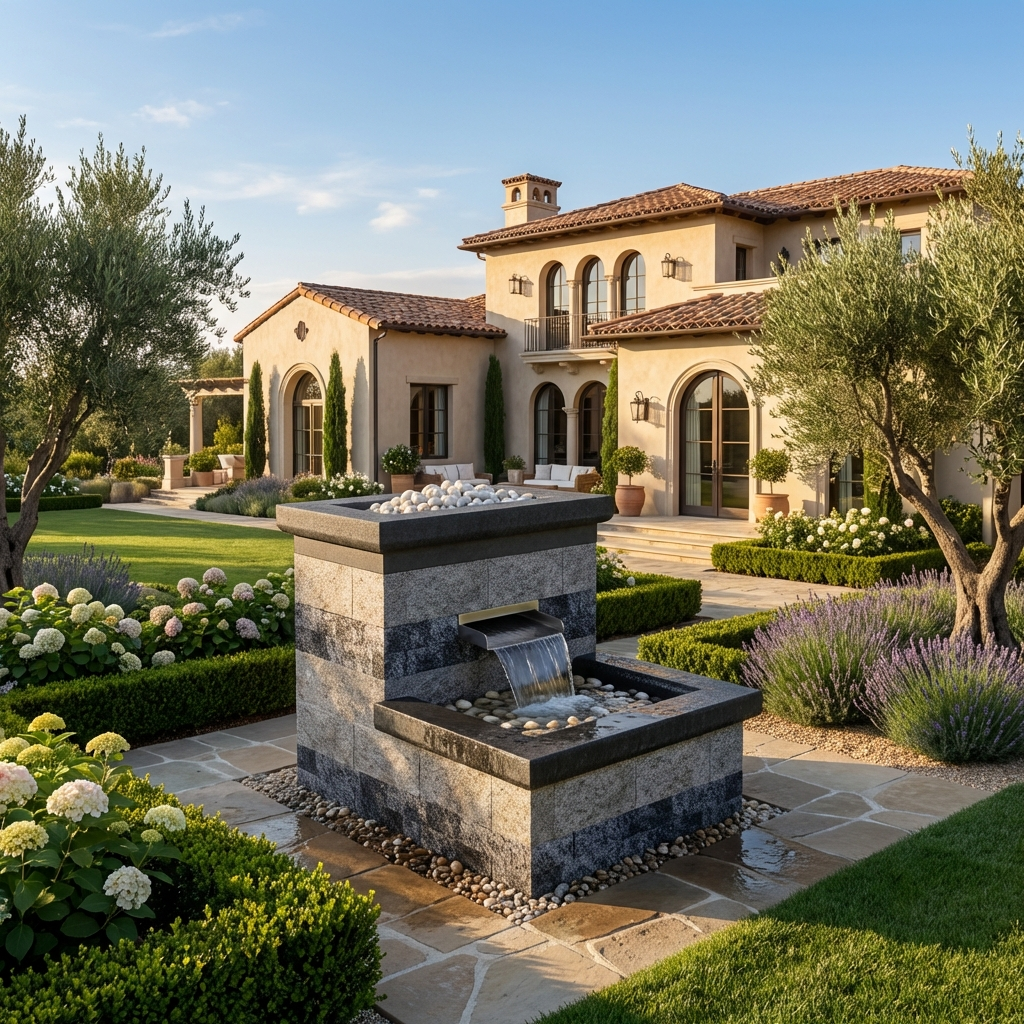

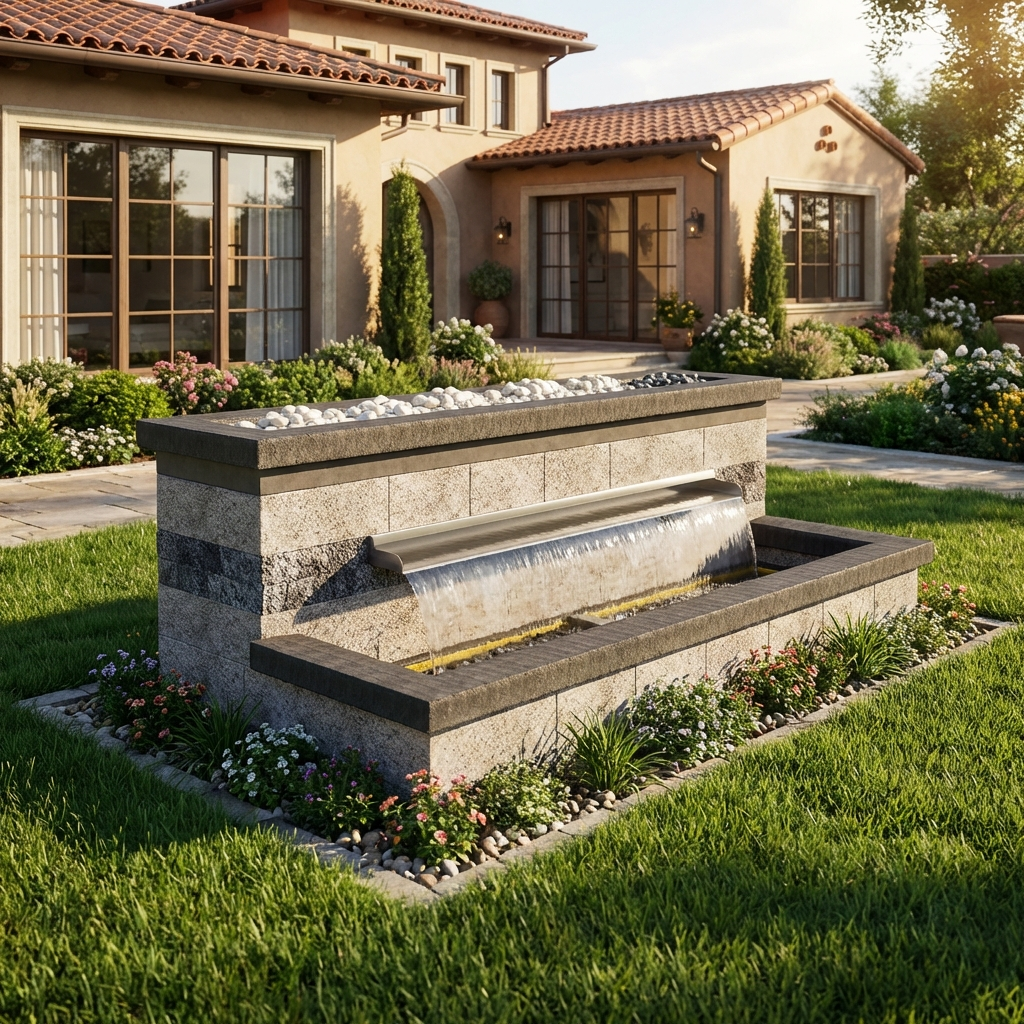

- • Sunken: Recessed into landscape

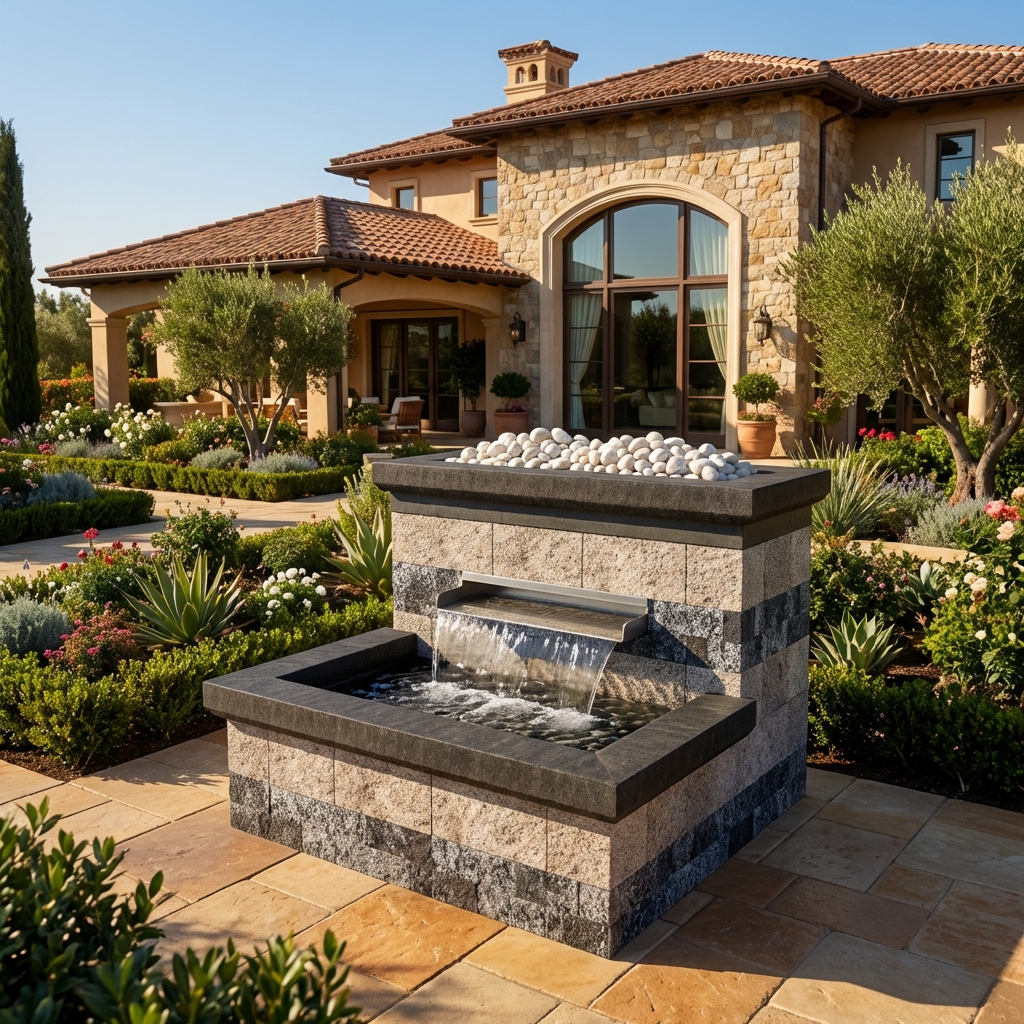

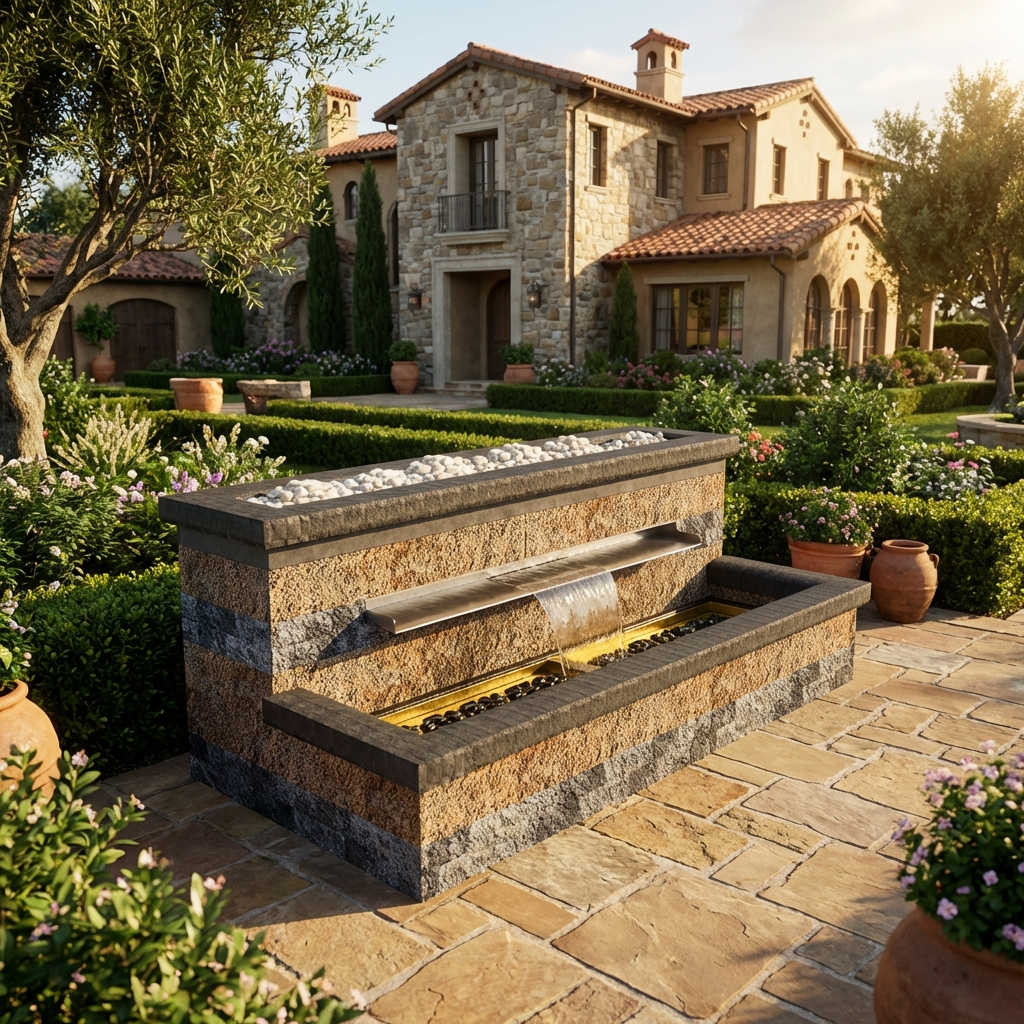

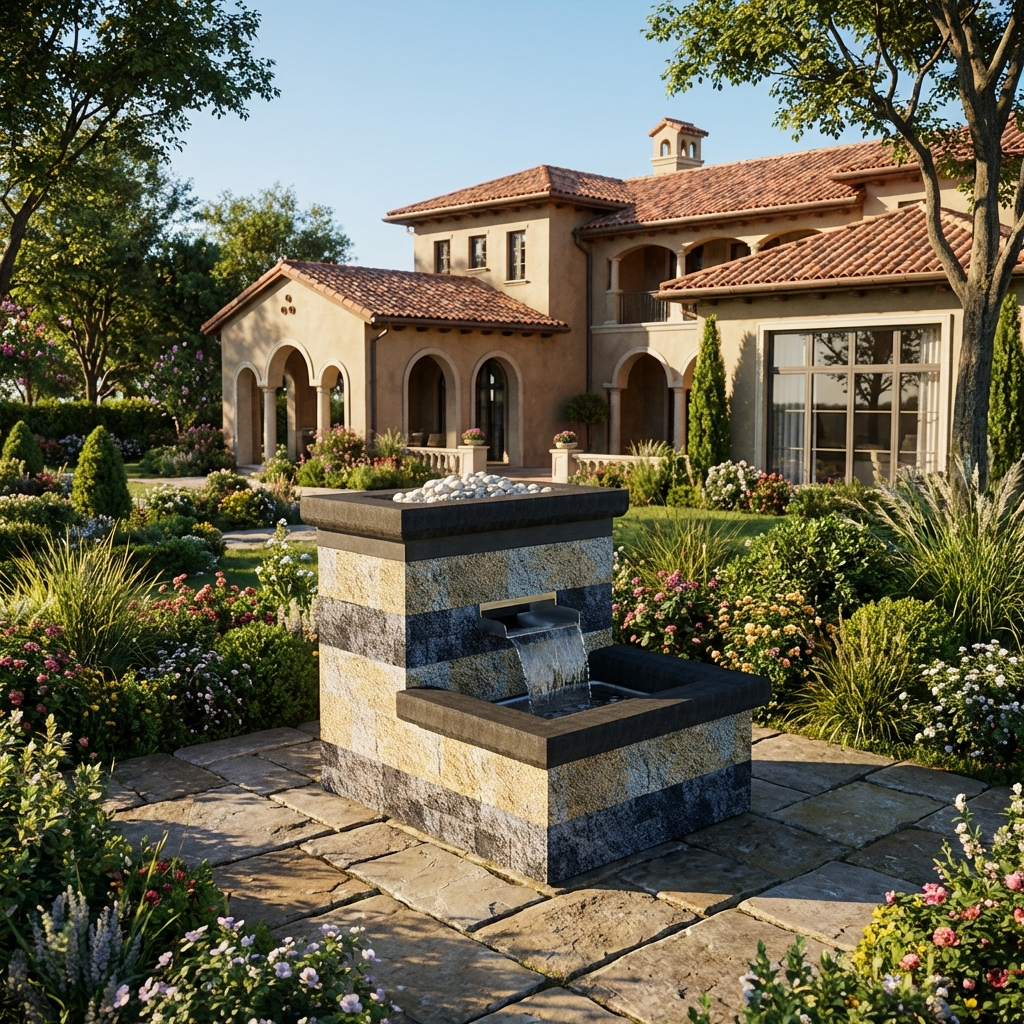

- • Surface: Mounted on slab
Technical Deep Dive
1. Matrix Consolidation (Size & Style)
I structured the family to handle two primary data inputs: Size and Installation Style.

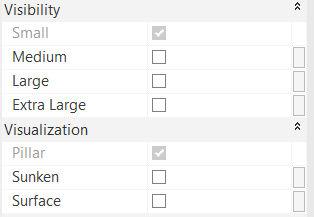

4 Sizes × 3 Styles = 12 combinations in 1 family:

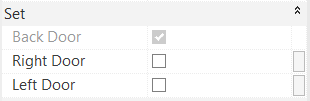

2. Flexible Maintenance Access
To solve the site coordination issue, I decoupled the maintenance access from the geometry's orientation using Yes/No Visibility Parameters.
Impact & Results
- Library Efficiency
- 12 → 1 Family
- Site Adaptability
- Door swapping on the fly
- Clash Detection Issues
- Eliminated
- MEP Connection Consistency
- 100% Standardized
- Browser Clutter Reduction
- ~92%
What This Demonstrates About Me
- • Cross-Discipline Thinking: Bridging Landscape and MEP coordination in a single solution.
- • User-Centric Design: Solving real site placement challenges with flexible door orientation.
- • Configurator Approach: Building "product configurator" style families for maximum flexibility.
- • Library Optimization: Reducing file count while increasing functionality.
